ABS Square Pier Pads
Durable, rot-proof ABS square pier pads that distribute pier loads evenly across the soil surface for stable manufactured home support.
Oliver Technologies' ABS square pier pads are injection-molded from high-strength ABS plastic, providing a durable, lightweight, and rot-proof alternative to traditional concrete footings for manufactured home installations. These pier pads distribute the weight of steel or concrete block piers evenly across the soil surface, preventing settling and maintaining level home support over time. Manufactured at our Hohenwald, Tennessee facility using injection molding presses ranging from 500 to 1,000 tons, our square pier pads meet HUD 3285 installation standards and are the preferred choice for manufactured home dealers and installers nationwide.
Installation Instructions
Superior Load Distribution for Manufactured Home Piers
ABS square pier pads serve as the critical base layer between the ground and your pier system. They distribute the concentrated load of steel or concrete block piers over a larger soil area, preventing point-load settling that can cause unlevel floors, door alignment issues, and structural stress.
Made from injection-molded ABS plastic, these pads will not rot, crack, or deteriorate like wood footings, providing permanent, maintenance-free foundation support throughout the life of the home.
Key Features
Specifications
ABS Square Pier Pad Load Capacity Chart
| Product # | Size | Pad Area | 1,000 PSF Load | 2,000 PSF Load | 3,000 PSF Load |
|---|---|---|---|---|---|

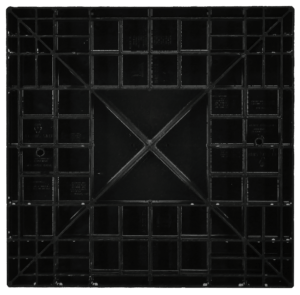

| 1055-14 | 16" × 16" | 256 sq. in. (1.78 sq. ft.) | 1,778 lbs. | 3,556 lbs. | 5,333 lbs. |

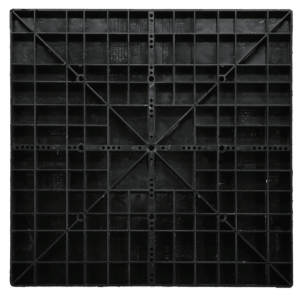

| 1055-17 | 18.5" × 18.5" | 342 sq. in. (2.38 sq. ft.) | 2,375 lbs. | 4,750 lbs. | 7,125 lbs. |

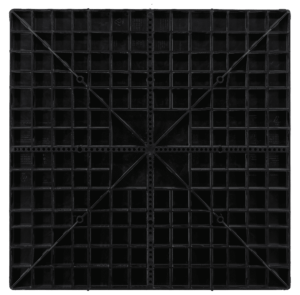

| 1055-20 | 20" × 20" | 400 sq. in. (2.78 sq. ft.) | 2,778 lbs. | 5,556 lbs. | 8,333 lbs. |

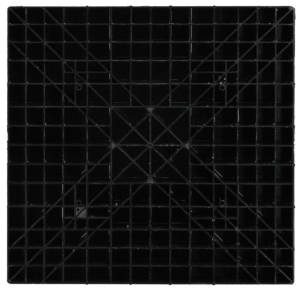

| 1055-26 | 24" × 24" | 576 sq. in. (4 sq. ft.) | 4,000 lbs. | 8,000 lbs.* | 12,000 lbs.* |
* Multi-pad configurations available for higher loads. PSF = Pounds per Square Foot. Verify soil bearing capacity before installation.
