Tie-Down Connectors & Straps
Complete range of frame ties, quick connectors, I-beam straps, sidewall brackets, and split bolts for manufactured home anchoring systems.
Oliver Technologies produces a comprehensive line of tie-down connectors and straps that connect anchors to manufactured home frames, completing the critical link in every anchoring system. Our product range includes swivel and J-hook frame ties, quick connectors for faster installation, I-beam straps for main beam connections, sidewall brackets for perimeter tie-downs, and split bolts for secure cable termination. Every connector is manufactured to HUD 3285 standards at our Hohenwald, Tennessee facility, ensuring code compliance and reliable performance in all wind zone applications.
Installation Instructions
The Critical Link in Every Anchoring System
Anchors provide holding power in the ground, but connectors and straps are what transfer that holding force to your manufactured home frame. Choosing the right connector for your installation is essential for code compliance and structural integrity.
Product Categories
- Frame Ties — Available in swivel and J-hook styles for flexible frame connections
- Quick Connectors — Speed up installation with tool-free connection systems
- I-Beam Straps — Heavy-duty straps for main beam tie-down connections
- Sidewall Brackets — Perimeter connection points for sidewall anchoring
- Split Bolts — Secure cable termination and connection hardware
Key Features
Specifications
Frame Ties & Straps
| Product # | Description |
|---|---|
| OTST1 | Double Slotted Buckles |

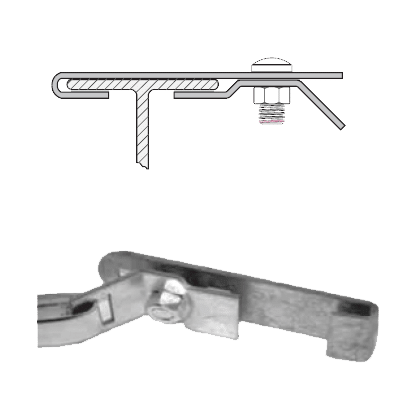

| OT SC2-7* | Swivel Frame Tie (Top Clamp) w/ 7' Strap |
| OT SC2-5* | Swivel Frame Tie (Top Clamp) w/ 5' Strap |

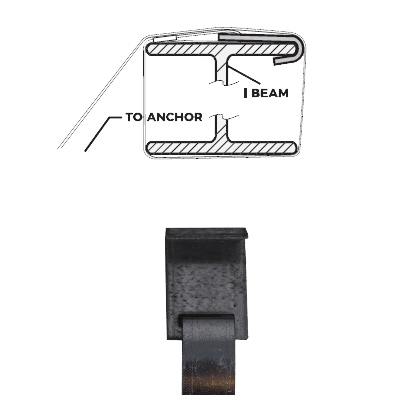

| OTFT1-12 | "J" Hook Frame Tie w/ 12' Strap |
| OTFT1-10 | "J" Hook Frame Tie w/ 10' Strap |
| OTFT1-8 | "J" Hook Frame Tie w/ 8' Strap |
| OTFT1-6 | "J" Hook Frame Tie w/ 6' Strap |

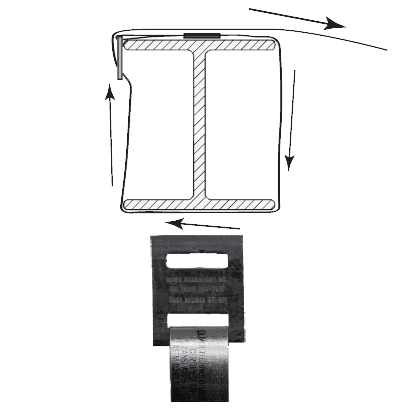

| OTST1-12 | Buckle Frame Tie w/ 12' Strap |
| OTST1-10 | Buckle Frame Tie w/ 10' Strap |
| OTST1-8 | Buckle Frame Tie w/ 8' Strap |
| OTST1-6 | Buckle Frame Tie w/ 6' Strap |
Quick Connectors & Roll Strapping
| Product # | Description |
|---|---|
| OTGAL600G60* | 600' Roll Strapping (G60) |

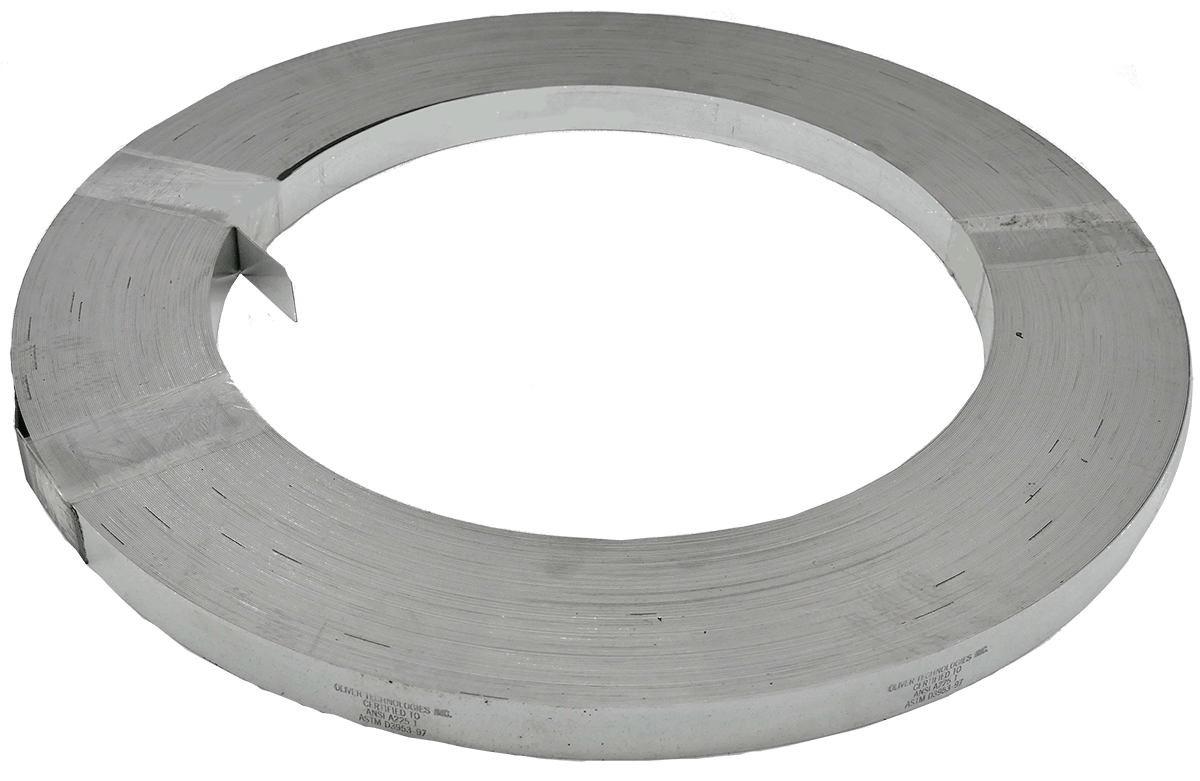

| OTGAL37G60* | 37' Roll Strapping (G60) |
| OT SQ 6 (LG) / OT-SQ2 6 (SML) | Quick Connector w/ 6' Strap G60 |
| OT SQ 5 (LG) / OT-SQ2 5 (SML) | Quick Connector w/ 5' Strap G60 |
| OT QC-6 (LG) / OT QC6 (SML) | Quick Connector w/ 6' Strap G120 |
| OT QC-5 (LG) / OT QC5 (SML) | Quick Connector w/ 5' Strap G120 |
| OTQCU-6* | Universal Quick Connector w/ 6' Strap G60 |
| OTQCU-5* | Universal Quick Connector w/ 5' Strap G60 |

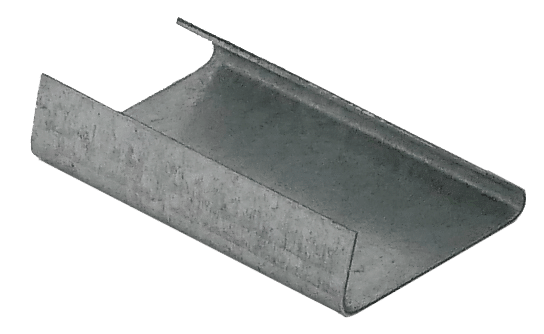

| OTCRIMPSEAL | Crimp Seal — Semi Closed |
I-Beam, Sidewall & Split Bolt Connectors
| Product # | Description |
|---|---|

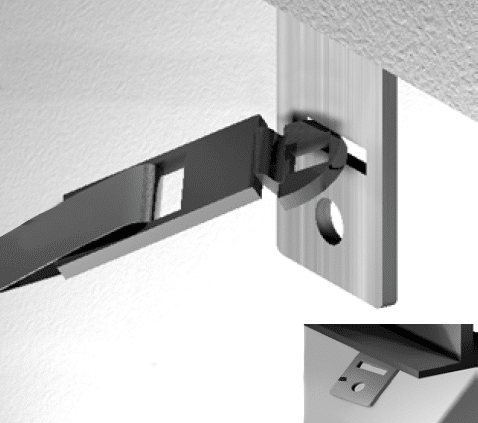

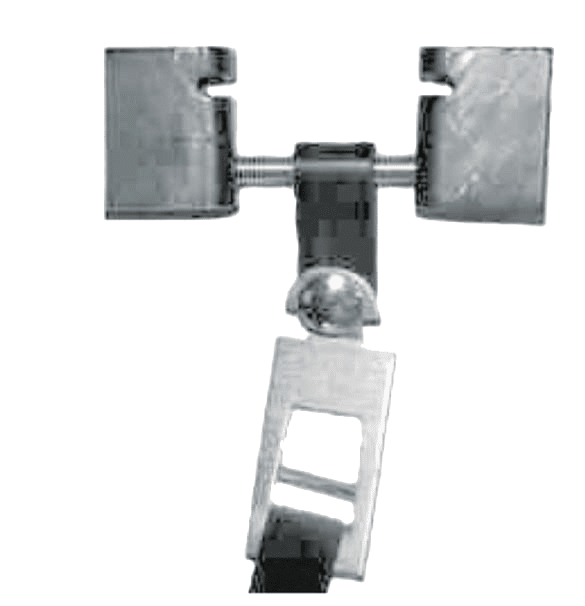

| OTLTK | Longitudinal I-Beam Connector |
| OTSWB | Sidewall Bracket |

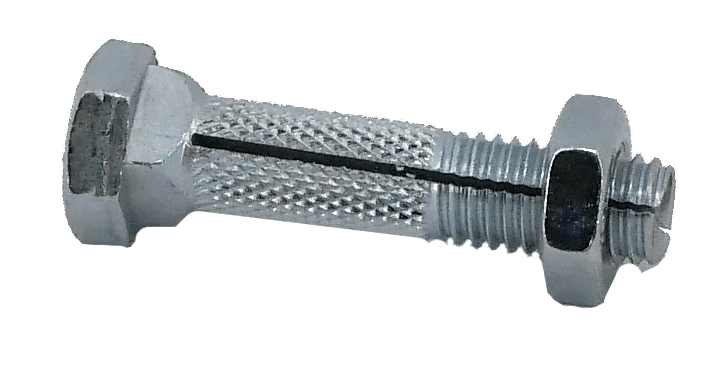

| OT S/B | 5/8" × 3" × 5/8" Galvanized Split Bolt w/ Hex Head |
| OTSFT N/B BB | 1/2" × 1" Bolt w/ Nut — Galvanized, Grade 5 |
* Sold by the roll or unit — contact sales for volume pricing. G60/G120 denotes galvanizing grade.
Frequently Asked Questions
What is the difference between swivel and J-hook frame ties?
Are these connectors compatible with other anchor brands?
